ART61600EV PROFI EVO163 1630MM CUTTER TILE MANUAL

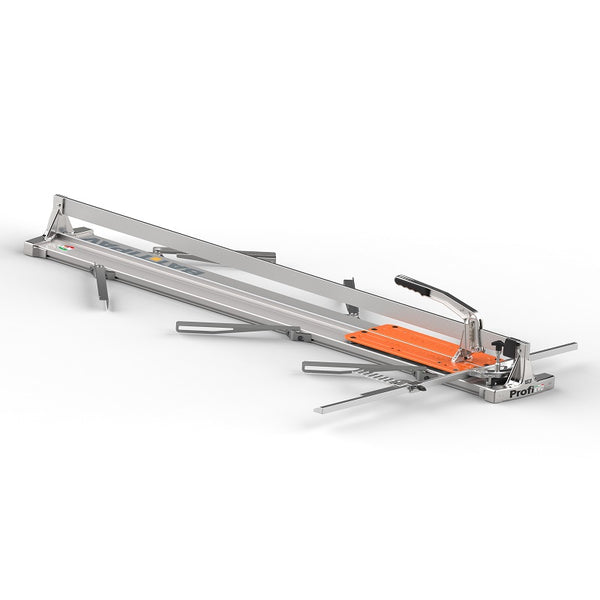

Battipav Profi 1630 EVO 163cm Manual Tile Cutter

Super professional tile cutter “TO PUSH” for diagonal and straight cuts on single-double fired ceramic and porcelain stoneware tiles.

ALUMINIUM MAGNETIC FOOT

The breaking foot in aluminum with a white rubber protection to avoid scratches. A magnet placed on the foot allows, by lifting it, to make the whole incision with a single move. Then, by lifting the handle, the foot is immediately ready for separation. Speed and precision.

STRUCTURE

Strong body made in aluminium draw-plate to get rigidity and lightness at the same time.

WORKTOPS

The worktops have been updated: special springs (4 x each side) guarantee rapid separation of the cut part and an excellent finish result

SIDE EXTENSIONS

A new design of the lateral supports ensures great stability when cutting large formats. Particularly long in extension make the cut comfortable and safe.

GONIOMETRIC SQUARE

The goniometric square is a monobloc, very rigid and stable, a lectern shape on which the centimeter scale is positioned; so you have a direct reading of the measurement to be cut.

EXTRA SPARE WHEEL

One more extra set spare wheel included. You never run out.

CARRIAGE

The carriage in aluminium is equipped with two ball-bearings one on the top and one on the bottom of the rail for a perfect sliding and top precision.

1630mm Straight cutting length

1150mm x 1150mm Diagonal cut

5-15mm Cutting thickness

Powerful breaker now with a magnetic breaker.

5 Year warranty

Weight 20.5kg

Please note – Cutting tiles thicker than 15mm isn’t always possible using a manual cutter. For tiles thicker than 15mm a wet saw should be considered
