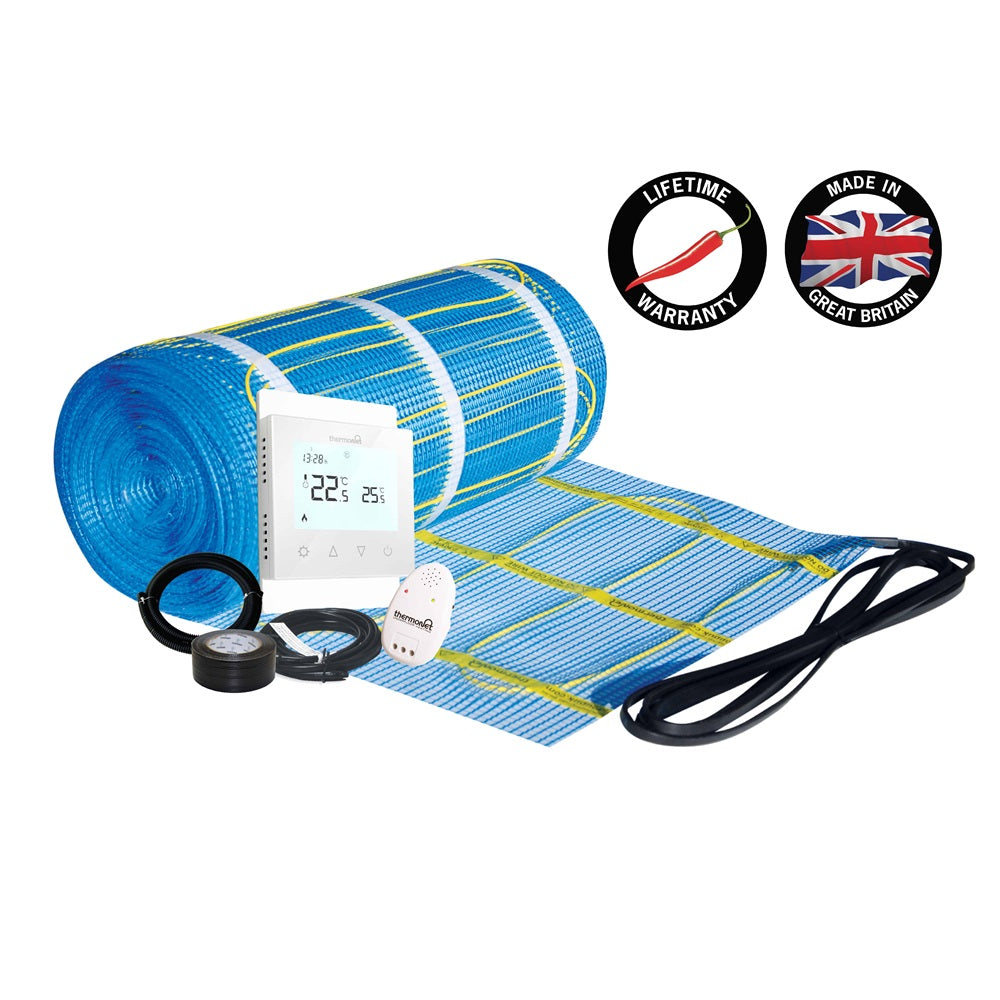

Full kit ready for installation
The Thermonet matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating.
Kit items include: Thermonet 150W/m² Mat, Programmable Thermostat (5220A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025) & Installation Guide & Warranty Form.
You won't see it, but you'll feel it
Thermonet features 3.5mm TwistedTwin cable, self-adhesive mesh and our low-profile cold tail connection cable. These features make up what we call LayFlat Technology because this combination neutralises tension in the finished product and makes Thermonet easier to fit.
Safe, simple and reliable
Thermonet underfloor heating cables have a tough fluoropolymer coating on the outside and internal conductors, a continuous armoured earth sheath and multi-strand twin conductors.
The conductors as twisted together to eliminate electromagnetic field (EMF) and neutralise the stress, expansion and contractions of the cable along the entire length; resulting in a more robust longer lasting cable.
Thermonet 150W/m² T Kits
|
Stock No.
111502T
|
Size
2 x 0.5m
|
Area
1m²
|
Output
150 W
|
Resistance
353 Ω
|
|
Stock No.
111503T
|
Size
3 x 0.5m
|
Area
1.5m²
|
Output
225 W
|
Resistance
235 Ω
|
|
Stock No.
111504T
|
Size
4 x 0.5m
|
Area
2m²
|
Output
300 W
|
Resistance
176 Ω
|
|
Stock No.
111505T
|
Size
5 x 0.5m
|
Area
2.5m²
|
Output
375 W
|
Resistance
141 Ω
|
|
Stock No.
111506T
|
Size
6 x 0.5m
|
Area
3m²
|
Output
450 W
|
Resistance
118 Ω
|
|
Stock No.
111507T
|
Size
7 x 0.5m
|
Area
3.5m²
|
Output
525 W
|
Resistance
101 Ω
|
|
Stock No.
111508T
|
Size
8 x 0.5m
|
Area
4m²
|
Output
600 W
|
Resistance
88 Ω
|
|
Stock No.
111509T
|
Size
9 x 0.5m
|
Area
4.5m²
|
Output
675 W
|
Resistance
78 Ω
|
|
Stock No.
111510T
|
Size
10 x 0.5m
|
Area
5m²
|
Output
750 W
|
Resistance
71 Ω
|
|
Stock No.
111511T
|
Size
11 x 0.5m
|
Area
5.5m²
|
Output
825 W
|
Resistance
65 Ω
|
|
Stock No.
111512T
|
Size
12 x 0.5m
|
Area
6m²
|
Output
900 W
|
Resistance
59 Ω
|
|
Stock No.
111513T
|
Size
13 x 0.5m
|
Area
6.5m²
|
Output
975 W
|
Resistance
56 Ω
|
|
Stock No.
111514T
|
Size
14 x 0.5m
|
Area
7m²
|
Output
1050 W
|
Resistance
50 Ω
|
|
Stock No.
111516T
|
Size
16 x 0.5m
|
Area
8m²
|
Output
1200 W
|
Resistance
44 Ω
|
|
Stock No.
111518T
|
Size
18 x 0.5m
|
Area
9m²
|
Output
1350 W
|
Resistance
39 Ω
|
|
Stock No.
111520T
|
Size
20 x 0.5m
|
Area
10m²
|
Output
1500 W
|
Resistance
35 Ω
|
|
Stock No.
111524T
|
Size
24 x 0.5m
|
Area
12m²
|
Output
1800 W
|
Resistance
29 Ω
|
|
Stock No.
111528T
|
Size
28 x 0.5m
|
Area
14m²
|
Output
2100 W
|
Resistance
25 Ω
|
|
Stock No.
111532T
|
Size
32 x 0.5m
|
Area
16m²
|
Output
2400 W
|
Resistance
22 Ω
|
