In Screed Heating
Thermonet 200Watt mats are the ideal option for in screed applications providing easy installation and efficient storage heating in screed layers of 20-50mm.
In Screed heating will take longer to heat up, however the screed layer acts as a heat bank and holds the heat for longer, ensuring you don’t have added running costs. In Screed heating allows the tiler flexibility in creating falls in wet areas and can be installed under most floor coverings. It is recommended to insulate under floor heating to gain maximum performance from your system.

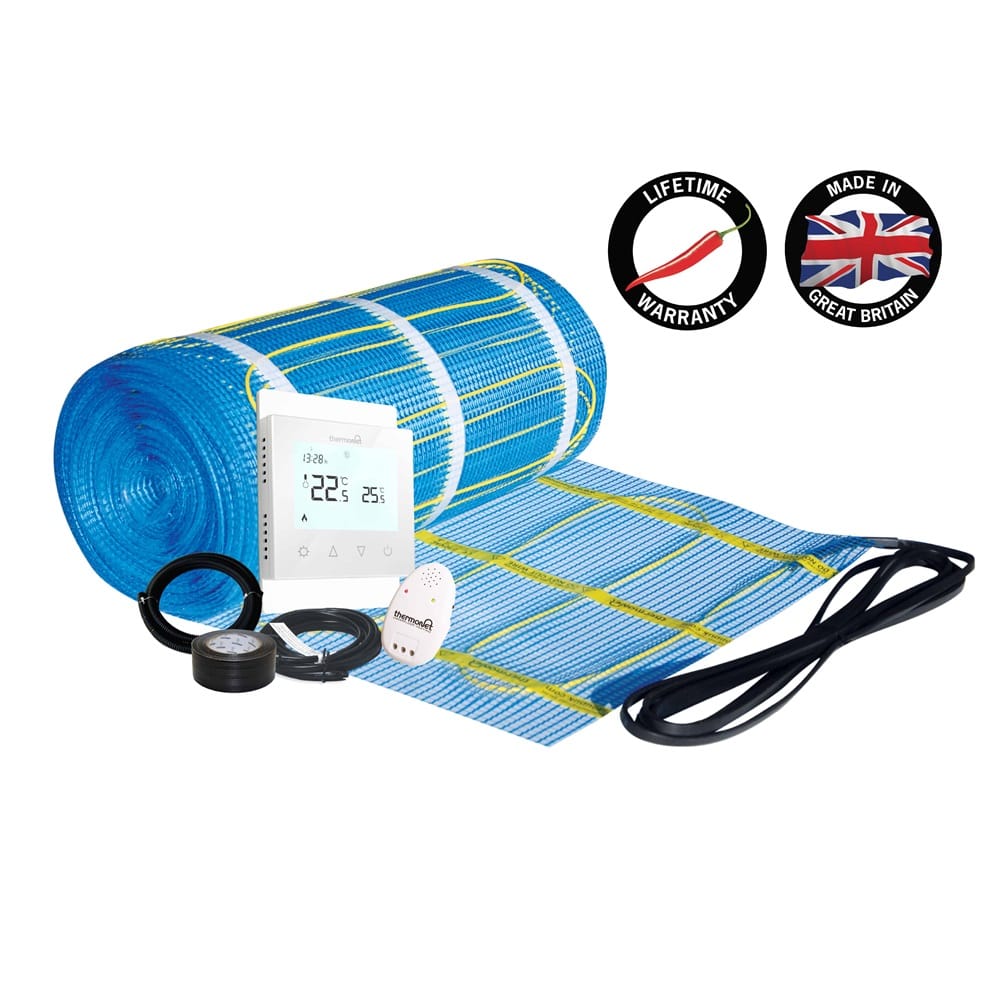

Full kit ready for installation
The Thermonet 200W/m² matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating.
Kit items include: Thermonet 200W/m² Mat, Programmable Thermostat (5220A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025) & Installation Guide & Warranty Form.
Thermonet 200W/m² T Kits
|
Stock No.
112002T
|
Size
2 x 0.5m
|
Area
1m²
|
Output
200 W
|
Resistance
265 Ω
|
|
Stock No.
112003T
|
Size
3 x 0.5m
|
Area
1.5m²
|
Output
300 W
|
Resistance
176 Ω
|
|
Stock No.
112004T
|
Size
4 x 0.5m
|
Area
2m²
|
Output
400 W
|
Resistance
132 Ω
|
|
Stock No.
112005T
|
Size
5 x 0.5m
|
Area
2.5m²
|
Output
500 W
|
Resistance
106 Ω
|
|
Stock No.
112006T
|
Size
6 x 0.5m
|
Area
3m²
|
Output
600 W
|
Resistance
88 Ω
|
|
Stock No.
112007T
|
Size
7 x 0.5m
|
Area
3.5m²
|
Output
700 W
|
Resistance
76 Ω
|
|
Stock No.
112008T
|
Size
8 x 0.5m
|
Area
4m²
|
Output
800 W
|
Resistance
66 Ω
|
|
Stock No.
112009T
|
Size
9 x 0.5m
|
Area
4.5m²
|
Output
900 W
|
Resistance
59 Ω
|
|
Stock No.
112010T
|
Size
10 x 0.5m
|
Area
5m²
|
Output
1000 W
|
Resistance
53 Ω
|
|
Stock No.
112011T
|
Size
11 x 0.5m
|
Area
5.5m²
|
Output
1100 W
|
Resistance
48 Ω
|
|
Stock No.
112012T
|
Size
12 x 0.5m
|
Area
6m²
|
Output
1200 W
|
Resistance
44 Ω
|
|
Stock No.
112013T
|
Size
13 x 0.5m
|
Area
6.5m²
|
Output
1300 W
|
Resistance
41 Ω
|
|
Stock No.
112014T
|
Size
14 x 0.5m
|
Area
7m²
|
Output
1400 W
|
Resistance
38 Ω
|
|
Stock No.
112016T
|
Size
16 x 0.5m
|
Area
8m²
|
Output
1600 W
|
Resistance
33 Ω
|
|
Stock No.
112018T
|
Size
18 x 0.5m
|
Area
9m²
|
Output
1800 W
|
Resistance
29 Ω
|
|
Stock No.
112020T
|
Size
20 x 0.5m
|
Area
10m²
|
Output
2000 W
|
Resistance
26 Ω
|
|
Stock No.
112024T
|
Size
24 x 0.5m
|
Area
12m²
|
Output
2400 W
|
Resistance
22 Ω
|
